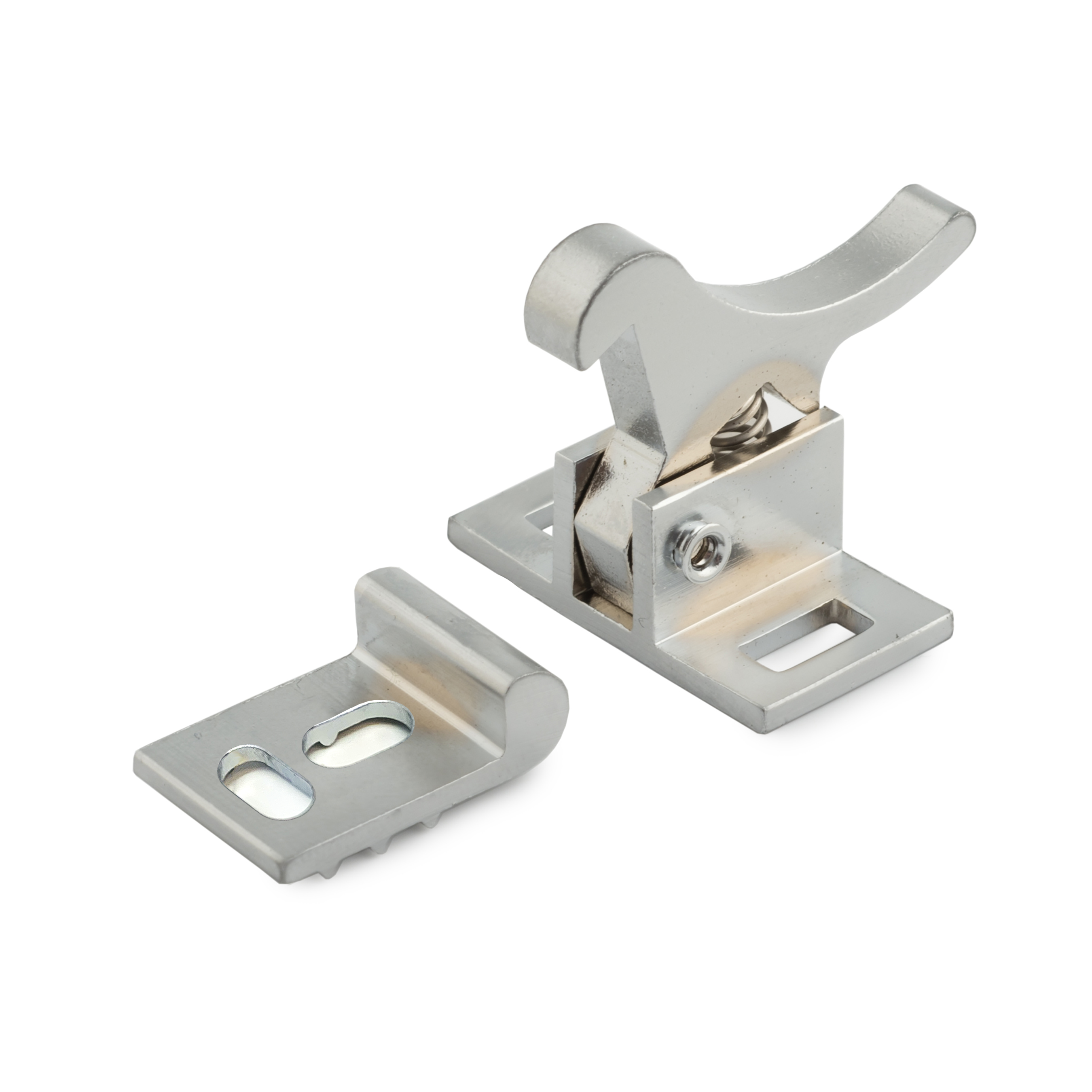

Heavy Duty Elbow Catch for Cabinets
ANSI/BHMA Certified – Grade 1 Standard
.jpg)

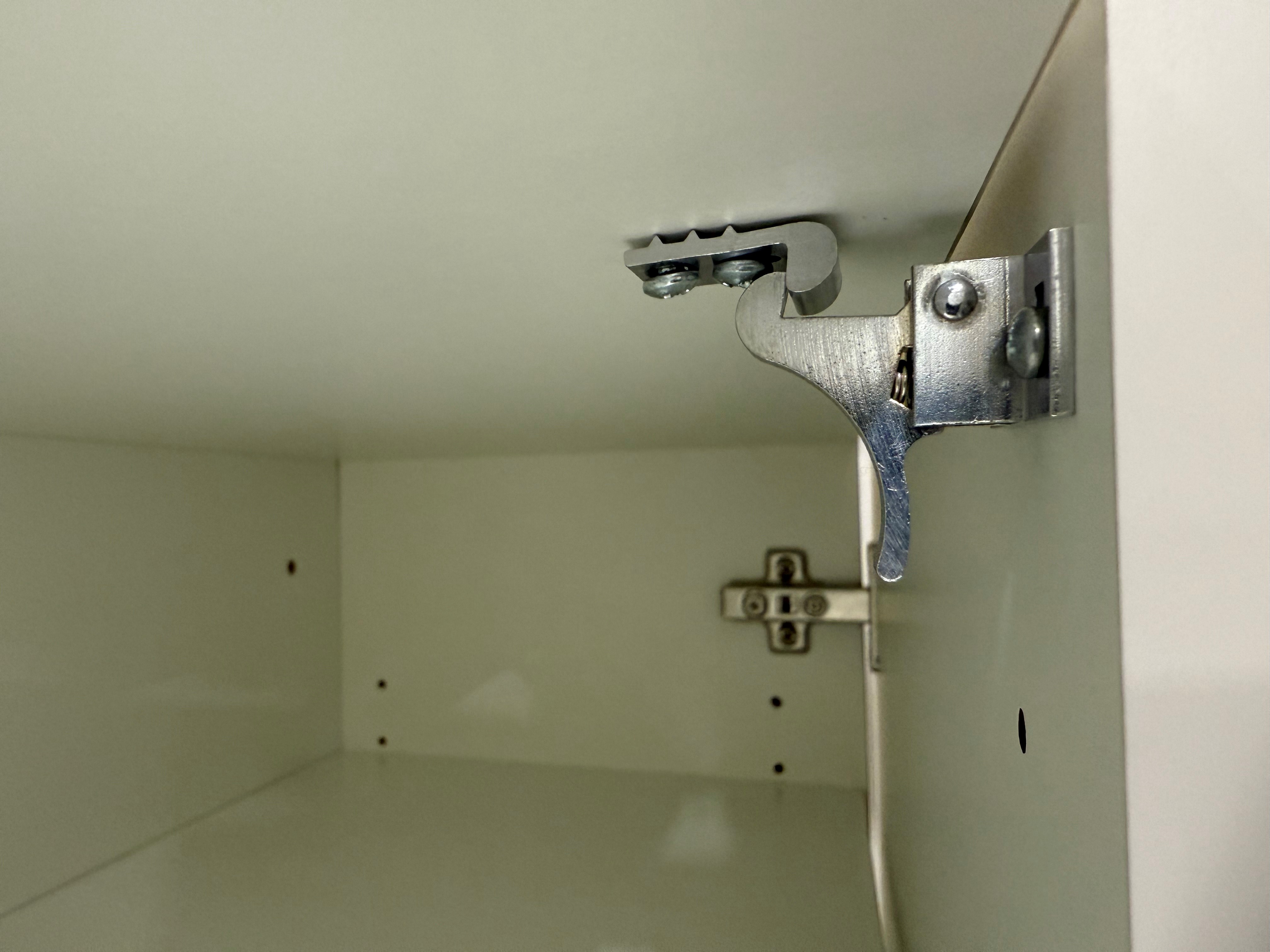

See Durability in Action
Trusted by Commercial Millwork Firms & Institutions
Millwork Firms
Institutions
Tired of Fixing Broken Cabinets?
Our Brass Elbow Catch Is Made For High-Use Environments
Standard cabinet latches fail in commercial environments. Our heavy duty elbow catch is engineered with solid brass construction and 316 stainless steel springs to withstand thousands of cycles in high-traffic applications.
- Solid brass construction vs. cast aluminum competitors
- 316 stainless steel spring for long-term reliability
- ANSI/BHMA Grade 1 certified performance
Technical Specifications
ANSI/BHMA certified professional-grade cabinet hardware

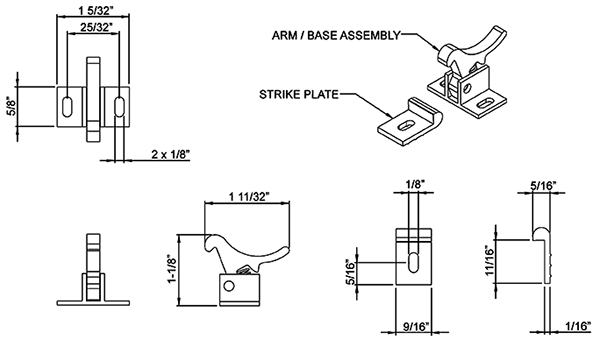

Product Dimensions

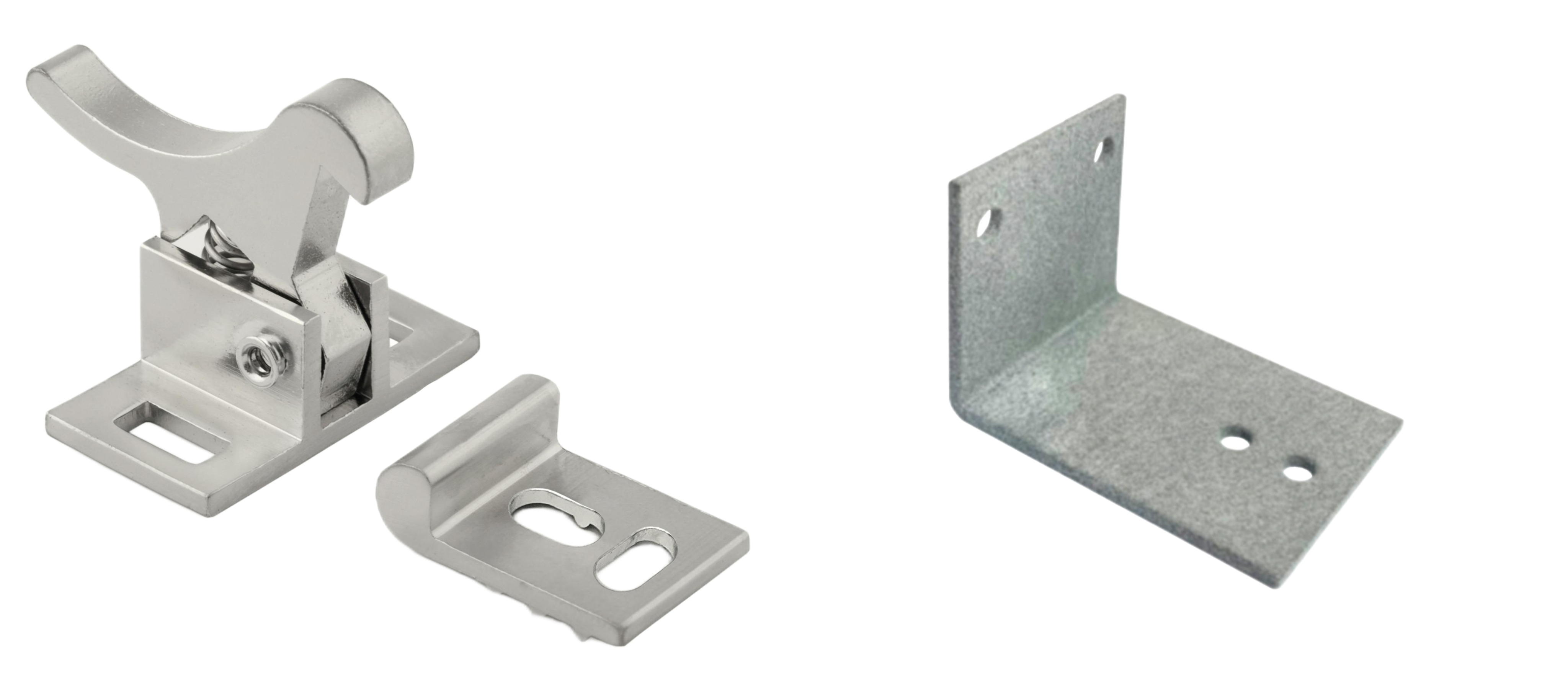

Available Models
Key Features
- Non-handed — works on left- or right-hand doors
- Finish: US26D Satin Chrome
- Woodwork Institute (WI) acknowledged product
- Meets ANSI/BHMA A156.9 B33023
- EC-TEM Installation Template available separately
Commercial Applications
Trusted in demanding commercial environments
Educational Facilities
Schools and universities rely on our heavy duty elbow catch for classroom cabinets, storage units, and administrative furniture that sees constant daily use.
Healthcare Institutions
Hospitals and medical centers choose our ANSI/BHMA certified latches for medical cabinets, supply storage, and patient room furniture requiring reliable security.
Retail & Commercial
Retail stores, offices, and commercial buildings use our heavy duty elbow catch for display cases, storage cabinets, and high-traffic millwork applications.
Government Buildings
Federal, state, and local government facilities specify our Grade 1 certified hardware for secure cabinet applications in offices and public buildings.
Hospitality Industry
Hotels, restaurants, and hospitality venues depend on our durable elbow catch for guest room furniture, kitchen cabinets, and service area storage.
Corporate Offices
Office buildings and corporate campuses use our heavy duty hardware for conference room cabinets, break room storage, and executive furniture applications.
Frequently Asked Questions
Common questions about our ANSI/BHMA certified heavy duty elbow catch
Is it ANSI/BHMA-certified?
Yes, our heavy duty elbow catch meets ANSI/BHMA A156.9 B33023 Grade 1 standards. This certification ensures the latch has been rigorously tested for durability, security, and performance in commercial applications. The Grade 1 rating is the highest level of certification available for cabinet hardware, guaranteeing reliable operation through thousands of cycles in high-traffic environments.
What is it made out of?
Our heavy duty elbow catch features solid brass construction with a 316 stainless steel spring mechanism. Unlike competitors who use cast aluminum, our brass construction provides superior strength and corrosion resistance. The 316 stainless steel spring ensures consistent tension and long-term reliability, even in demanding commercial environments. The finish is US26D Satin Chrome for a professional appearance.
Does the installation template come with it?
The EC-TEM installation template is available separately and is not included with the elbow catch. This professional-grade template ensures precise installation and proper alignment for optimal performance. The template is reusable and designed for millwork professionals who need consistent, accurate installations across multiple projects. It's particularly valuable for large commercial installations where precision is critical.
Does it come with screws?
Screws are included with the EC-2-26D individually packed model, which comes with both the latch and strike in a polybag with mounting hardware. The EC-1-26D bulk packed model includes the latch and strike components but does not include screws, making it ideal for contractors who prefer to use their own fasteners or have specific screw requirements for their applications.
